Black Sic 98% 98.5% 99% Silicon Carbide F30 F36 F40 F46 F54 F60 F80 F100 F120

Black Sic 98% 98.5% 99% Silicon Carbide F30 F36 F40 F46 F54 F60 F80 F100 F120

$1,800.00$5,000.00 / MT

Black Sic 98% 98.5% 99% Silicon Carbide F30 F36 F40 F46 F54 F60 F80 F100 F120

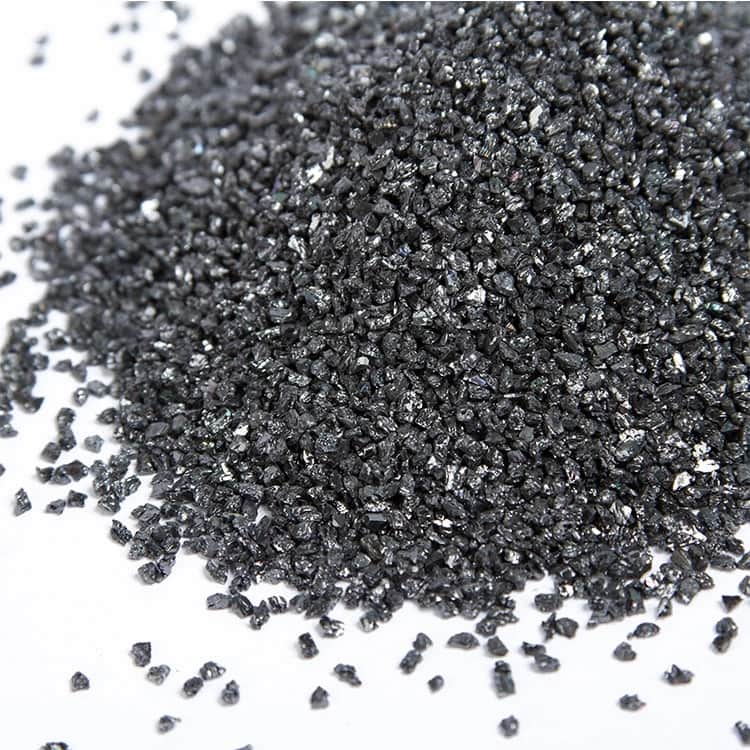

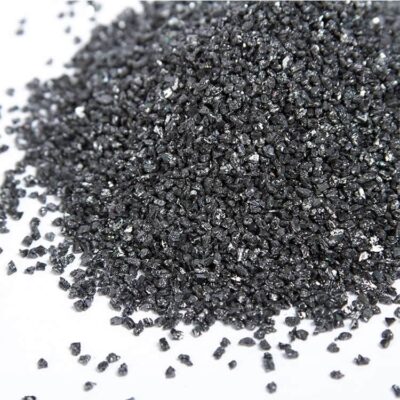

Black Silicon Carbide is produced in a high temperature electric resistance-type furnace from a mixture of quartz sand and petroleum coke.

The hardness of black silicon carbide is greater than fused alumina but less than synthetic diamond.

Black silicon carbide’s mechancial intensity is greater than fused alumina, but brittle and sharp.

Black silicon carbide has some electrical and heat conductivity.



Applications



Bonded abrasive tool

Coated abrasive tool

Reusable abrasive

Grinding,lapping & polishing medium

Resin/Ceramic grinding wheels & grinding media



Typical Physical Properties



Colorblack
Hardness9.2 mohs
Grain shapeAngular
Melting Point2100 C min
True density3.20-3.25g/cm3
Bulk density1.2-1.6g/cm3(depends on the size)



Typical Chemical Analysis



SIC98.50%
Free Carbon0.08%
Fe2O30.13%



































Typical Size





F-macrogrits sizes bonded
Grit designationMean diameter in um
F44890
F54125
F63460
F72900
F82460
F102085
F121765
F141470
F161230
F201040
F22885
F24745
F30625
F36525
F40438
F46370
F54310
F60260
F70218
F80185
F90154
F100129
F120109
F15082
F18069
F22058



MICROGRITS
Grit designationMean grain size ds50-value in μm
F 23053.0 ± 3
F 24044.5 ± 2
F 28036.5 ± 1.5
F 32029.2 ± 1.5
F 36022.8 ± 1.5
F 40017.3 ± 1
F 50012.8 ± 1
F 6009.3 ± 1
F 8006.5 ± 1
F 10004.5 ± 0.8
F 12003.0 ± 0.5

















P-macrogrits sizes coated
Grit designationMean diameter in um
P121815
P161324
P201000
P24764
P30642
P36538
P40425
P50336
P60269
P80201
P100162
P120125
P150100
P18082
P22068



P-microgrits sizes coated
Grit designationMean grain size ds50-value in um
P24058.2±2
P28052.2±2
P32046.2±1.5
P36040.5±1.5
P40035.0±1.5
P50030.2±1
P60025.8±1
P80021.8±1
P100018.3±1
P120015.3±1
P150012.6±1
P200010.3±0.8
P25008.4±0.5
P30006.7±0.5
P40005.5±0.5
P50004±0.5
